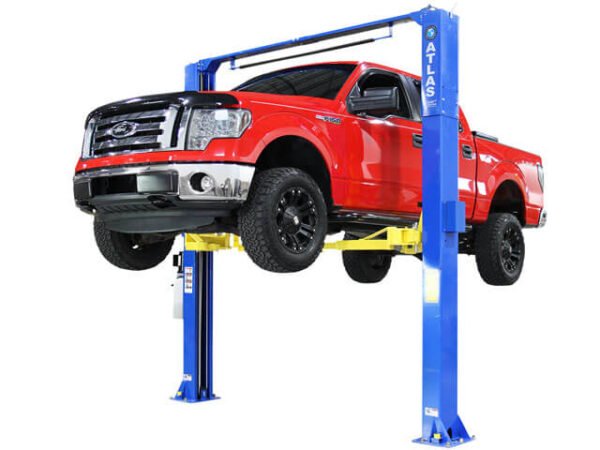

Atlas® Pro-9D Overhead 9,000 lb. Capacity Direct Drive Premium 2 Post Lift

The Atlas Pro-9D 9,000 lb. 2 Post Lift is the perfect choice for those customers who demand the most lifting capacity at a great price.

The Atlas Pro-9D has symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height allows the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks utilizing the longer rear arms.

The Atlas Pro-9D includes: a complete set of solid peg type truck adapters, mounting hardware, and a 220 volt single phase power unit that can be mounted on either side of the lift. (The power unit column must be on the correct side).

The Atlas 9,000 lb. capacity overhead 2-post lift is perfect for your small business or home shop.  It allows perfect access to almost any part on your car or small truck.  Make working on and maintaining your cars an easy and safe experience.

Racer Recommendation:

The PRO9D has premium features that almost no other 9k lift offers- Single point lock release and Direct Drive cylinders. This is the lift to work on your race car because of its extremely low pad height and solid reliability.  This will allow you to lift most race cars without the use of blocks or ramps.  If you do not have at least 12′ ceiling height, but still want to go with a two post lift please check-out our Race Tools Direct 9,000 lb Base Plate two-post lift designed for low ceiling garages.

Atlas Pro-9D 9,000 lb. 2 Post Lift Features and Benefits:

• 9,000 lb. capacity
• NO DIESEL TRUCKS- For 3/4 ton diesel and larger we recommend a 10k-11k lift due to the weight on the front two arms.
• SINGLE point lock release- 1 handle releases both sides at once
• Direct Drive Cylinders-
• Asymmetric arms- Longer rear arm
• Includes set of (4) 5″ tall height adapters
• Includes Anchor Bolt Set
• Floor anchor bolts are included

Atlas Pro-9D 9,000 lb. 2 Post Lift Requirements:

• Minimum 4″ thick, 3000 psi concrete
• 12′ ceiling height
• 220V, 30A breaker

Atlas Pro-9D 9,000 lb. 2 Post Lift Warranty:

• 5 year structural
• 2 year hydraulic
• Parts Only material and workmanship, 90 days on wear items


  Atlas® Pro-9D Specifications
  Capacity												9,000 LB.

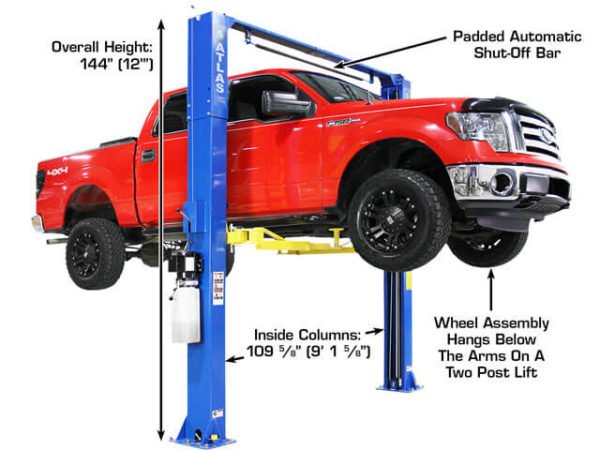

  Overall Height												144″ (12′)
  Overall Width												142 1/2″ (11′ 10 1/2″) (With Power Unit) 133 7/8″ (11′ 1 7/8″) (Without Power Unit)

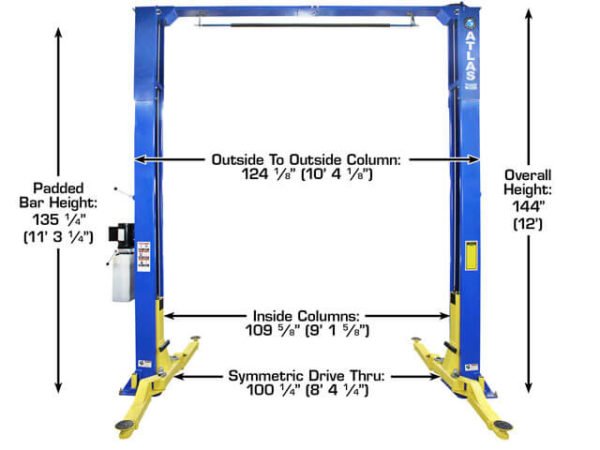

  Outside Column To Outside Column												124 1/8″ (10′ 4 1/8″)
  Lift Height (Without Adapters)												On Locks: 68″ (5′ 8″) Not On Locks: 71 5/8″ (5′ 11 5/8″)

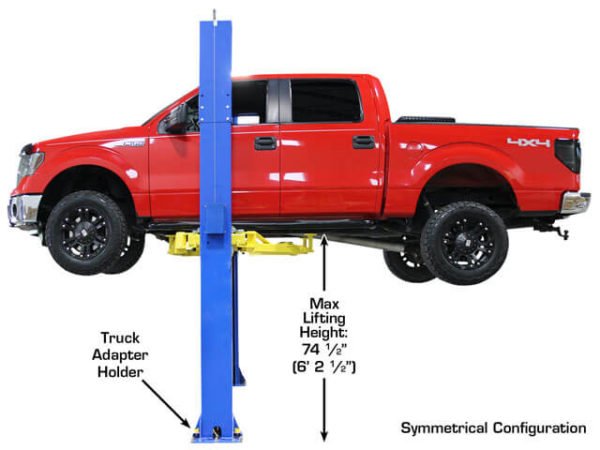

  Maximum Lift Height (With Adapters)												On Locks: 74 1/2″ (6′ 2 1/2″) Not On Locks: 77 5/8″ (6′ 5 5/8″)
  Padded Bar Height												135 1/4″ (11′ 3 1/4″)
  Minimum Arm Height												4 1/2″
  Inside Column												109 5/8″ (9′ 1 5/8″)
  Column Size												7 1/4″ x 11″

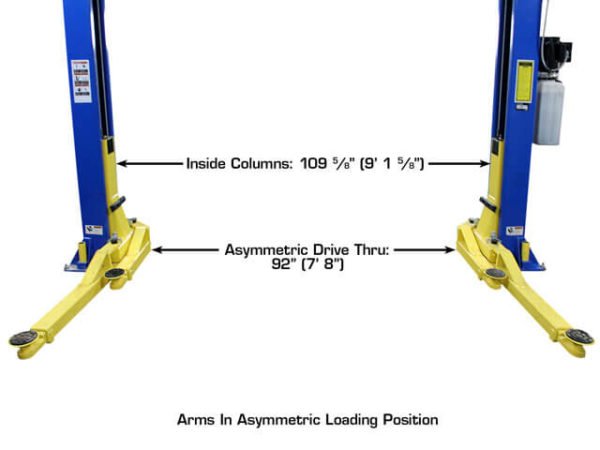

  Drive Thru												100 1/4″ (8′ 4 1/4″) (Symmetric Arm Configuration) 92″ (7′ 8″) (Asymmetric Arm Configuration)
  Base of Lift												14 ½” x 18″
  Column Thickness of Steel												5mm
  Carriage Thickness of Steel												6mm
  Arms Thickness of Steel												6mm
  Cable Diameter												.375″
  Motor/Electrical Requirement												220V single (1) phase. A 30 amp breaker is required.
  Oil Requirement												3-5 Gallons AW32/AW46
  Requires a minimum of 4″ of concrete with 3000 psi.
  Shipping Weight												1450 lbs.
